Telecentric Lens
A Telecentric lens is a kind of lens that the chief rays are parallel to the optical axis. There are three kinds of telecentric lens, that is the object-space telecentric lens, image-space telecentric lens, and the bi-telecentric lens.

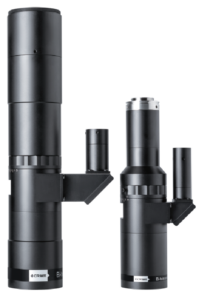

High Mag Large Format Telecentric Lens
- Designed for 6500 Pixels 38mm, 8K 5um, and 1.1’ sensors
- Large NA, high resolution, and low distortion
- Superior image consistency with whole FOV
- Multilayer coating reduces the contrast decline caused by stray light
- Condenser design in coaxial type ensure the illumination consistency and efficiency, and in the same time reduces the hot spot

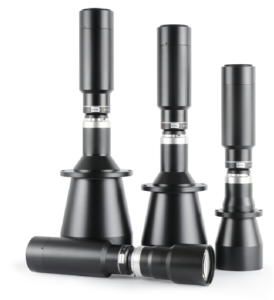

High Resolution Telecentric Lens PTL Series
- Support max ½’,2/3’,4/3’,1’,1.1’2’,7/4’ area array, 4K / 8K / 12K / 16L line scan, full frame and other types and specifications of industrial camera
- Ultra-high telecentricity bi-telecentric design, improving the measurement accuracy by several times
- Dedicated matching parallel light source and excellent uniformity
- Adjustable iris is adopted to balance the DOF and resolution
- Some lenses support inner L90 steering, saving installation space.
High Resolution Telecentric Lens
- Support sensors up to 1.1’ inch
- Object telecentric and bi-telecentric design
- Coaxial type is available

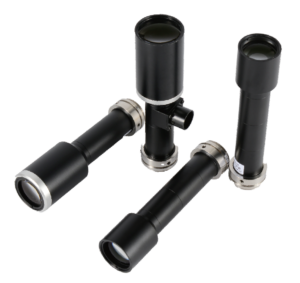

Standard Resolution Telecentric Lens
- Object telecentric design
- Support up to 1.1’ sensor
- Mag from 0.3x to 6x
- Both coaxial and non-coaxial type are available
- WD of 65mm to 110mm
- High mag and large aperture provide high resolution up to 210lp/mm
- Suitable for high precision positioning in defect inspection
